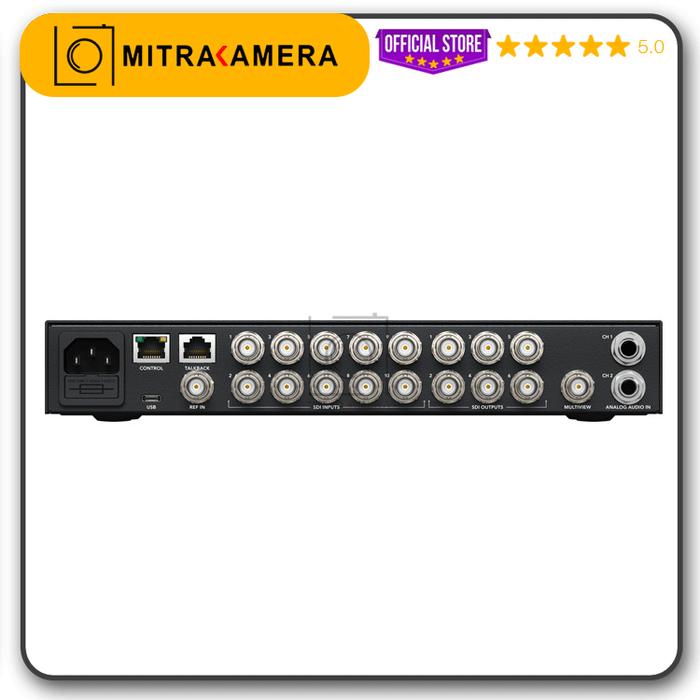

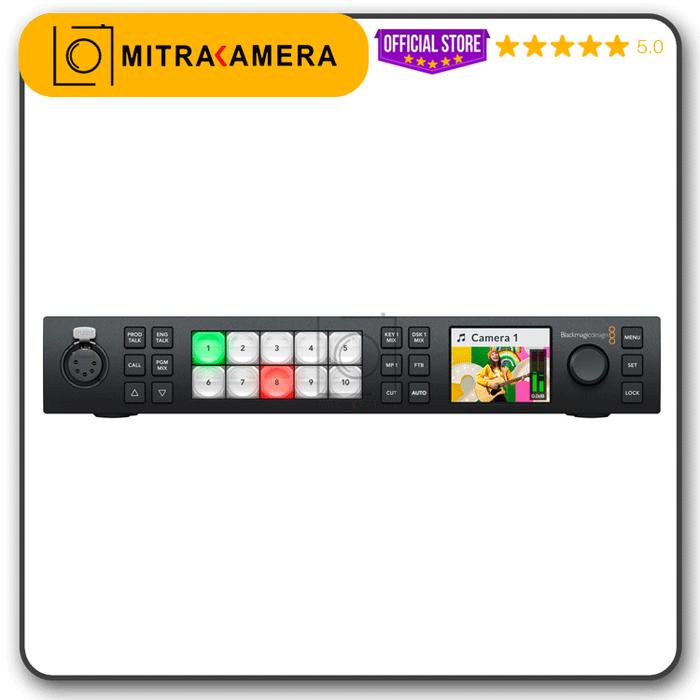

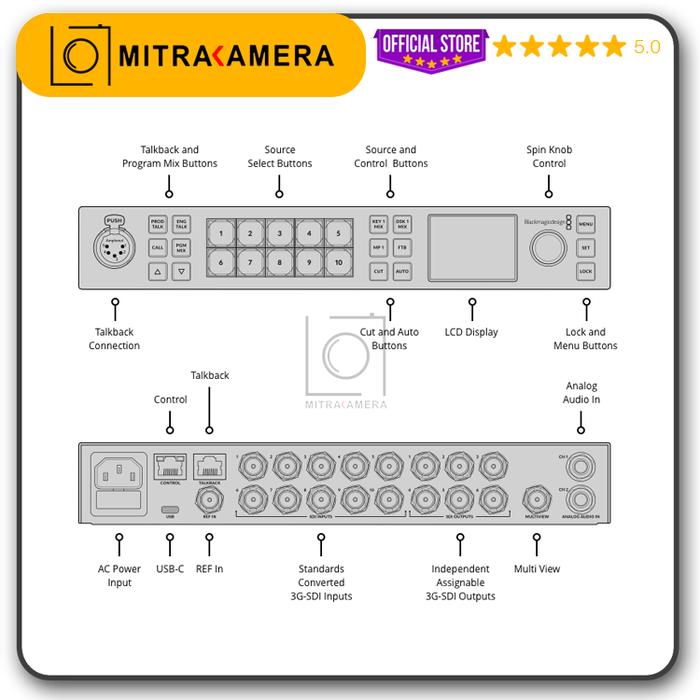

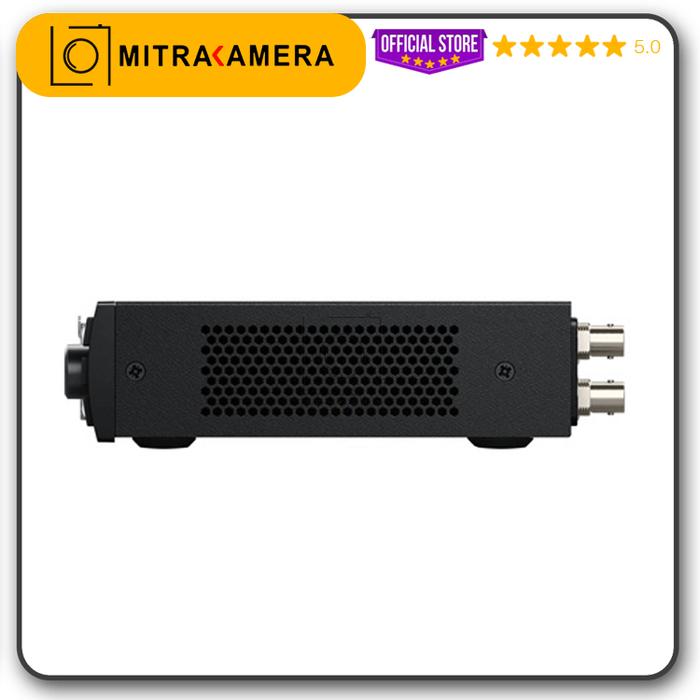

Blackmagic Design ATEM 1 M/E Constellation HD

 ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

STANDARS :SD Video StandardsNone

HD Video Standards720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60SDI ComplianceSMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

SOFTWARE :Control Panel IncludedATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.Software UpdatesUsing USB or Ethernet connection directly connected to Mac OS or Windows computers.

Includes ATEM Setup Utility.ConfigurationSet via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
